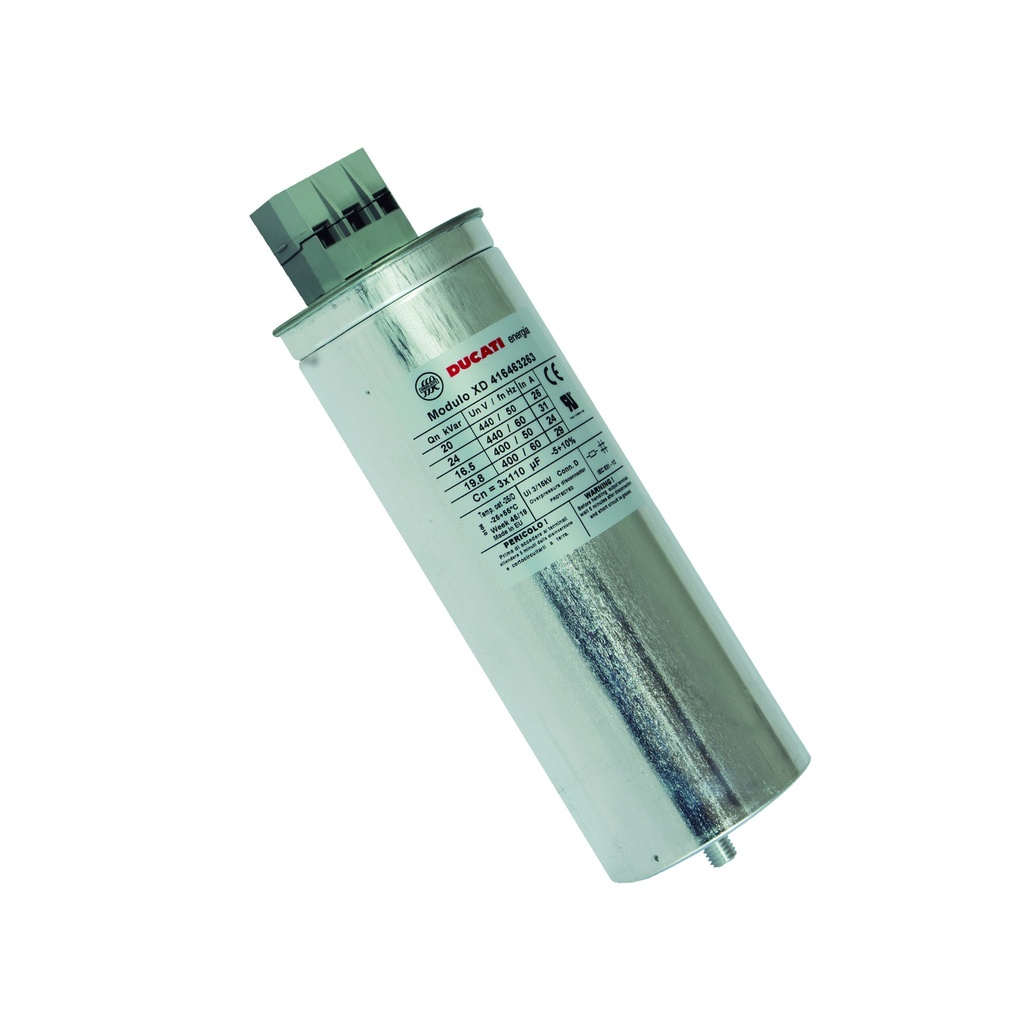

XD-EXTRA DUTY Three-phase capacitors XD-EXTRA DUTY
Referencia:
• Networks with high harmonic content <60% THDi
• Available voltages: 230 ~ 1000VAC (consult)
• Frequency: 50/60 Hz
• Continuous service
• Protection degree: IP00 (IP54 with cover)
• Material: aluminum
• Fixing: M12 screw
• Discharge resistor: included (50V in 60s)
• Connection: screws
• Useful life: >110,000h
• Standards: IEC 831-1/2
• They are used in the manufacture of power factor correction equipment, with a high number of harmonic disturbances. They do not contain toxic substances (PCB-free), made of self-healing polypropylene. Equipped with an overpressure device.
