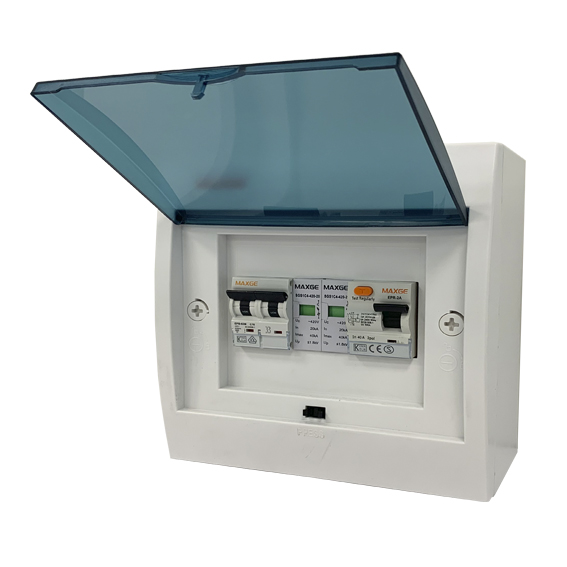

MGAC Plastic AC protection panels for inverter output
Referencia:
Enclosure Features
• Made of self-stinging insulating ABS
• Glow wire test: 650°
• Protection degree IP30, IK06
• White color RAL9003
• Class II insulation
• Working voltage: 400VAC
• IEC60670 and IEC62208 standards
• Door opening 110°
• Includes connection strips and modular chassis
Interior composition
Magnetothermal switch 2 or 4 P, 6kA, curve C
2 or 4 P differential switch with 30mA sensitivity Class A Immunized
Surge limiter 2 or 4 poles, type 2, In=40kA, Up=2kV
