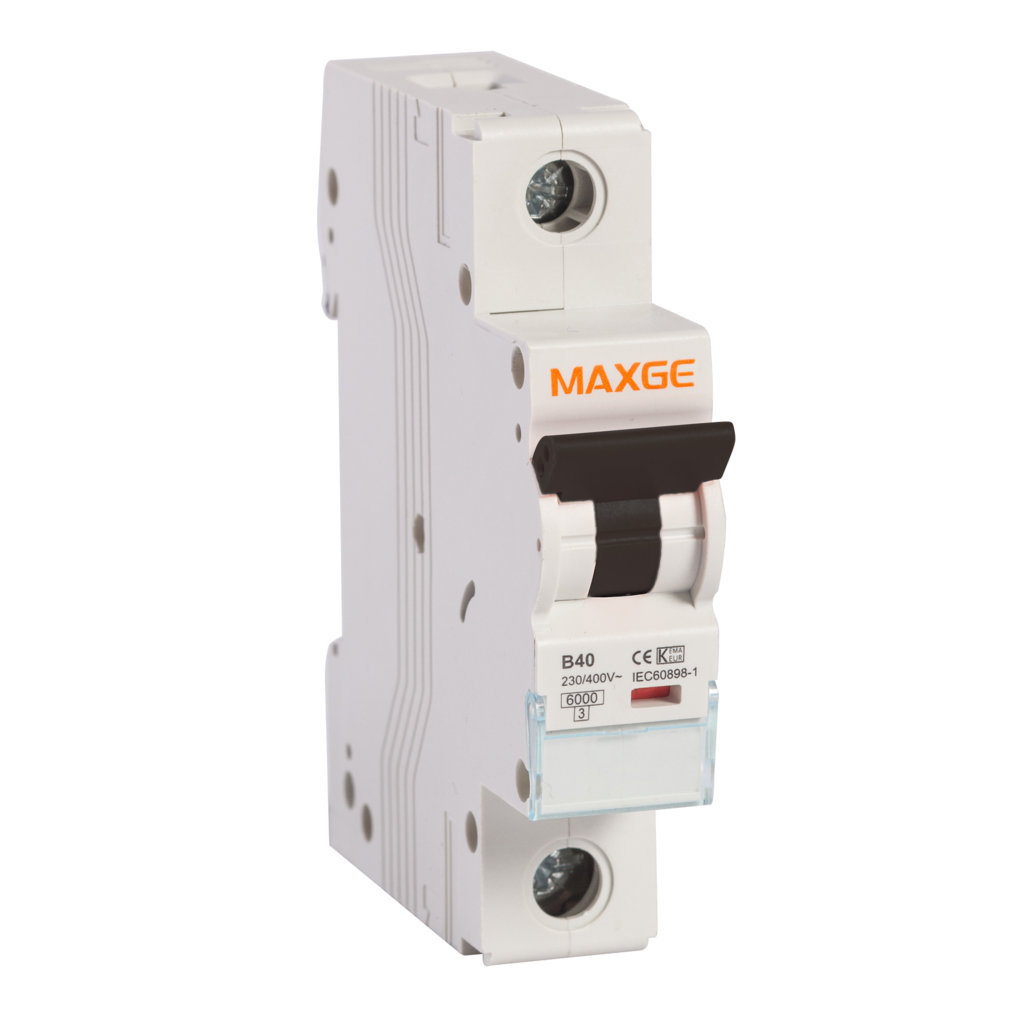

Magneto-thermal automatic switch. Tertiary. Cutting power 6kA. (EPB63M)
Referencia: EPB63M1B01
• Allows the coupling of accessories and electrical auxiliaries.
• Local status signaling. Circuit marker window.
• Double insulation class 2. Insulation voltage (Ui) 500VA.
• Operating voltage: 415/240V AC.
• Impulse voltage (Uimp) 4kV.
• Working temperature: -5÷40°C.
• Suitable for sectioning.
• Terminal connection for copper cables:
Gauge <25A: flexible =16mm² and rigid =25mm² .
Caliber 32 to 63A: flexible =25mm² and rigid =35mm².
• Dimensions: 1 module per pole (18mm).
• Pollution degree 3.
• International standard EN/IEC60898-1,60947-2.
