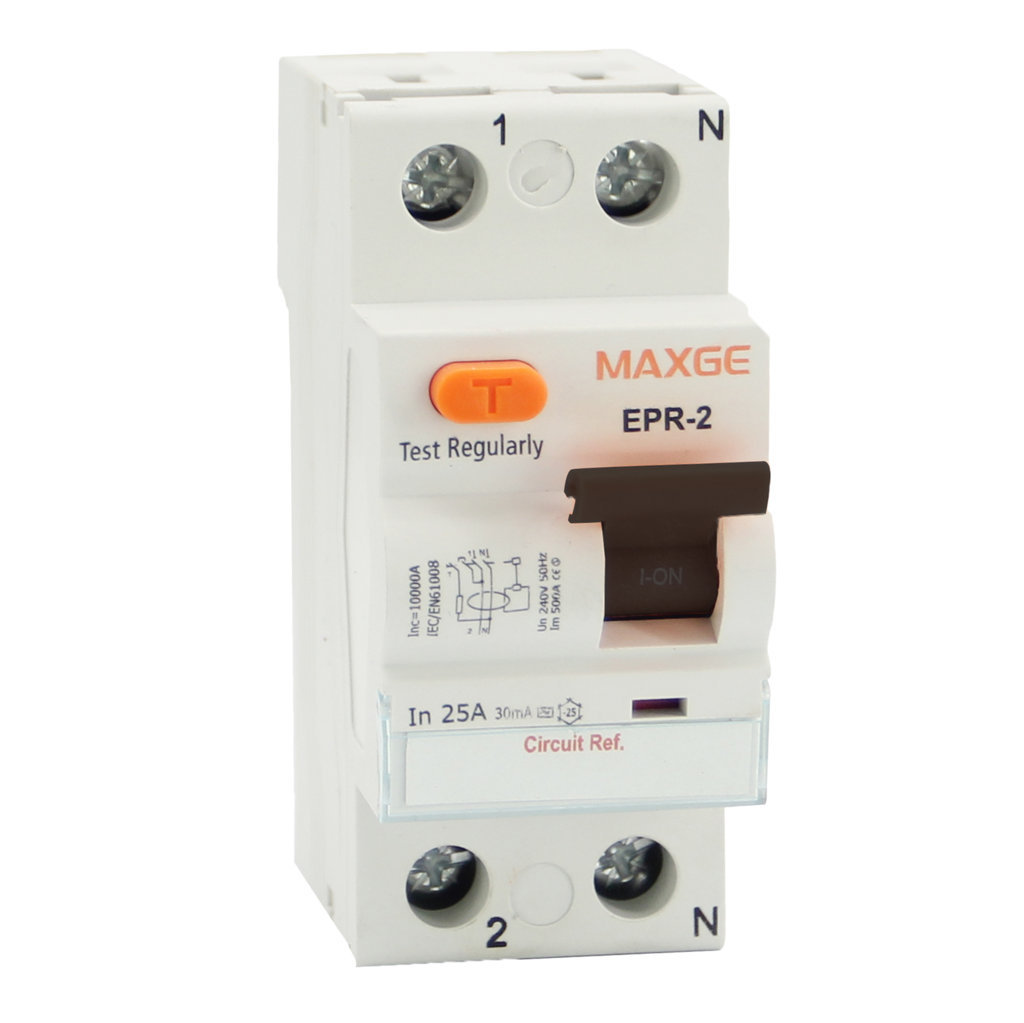

EPR Instantaneous trip differential switches. Residential. Cutting power: 6kA
Referencia: EPRE2A025030
| Poles: 1+N |
| Milliamp Sensitivity: 30 |
• Terminal connection for copper cables:
• Flexible =25mm2
• Rigid =35mm2
• Short circuit resistance: 500A
• Class AC detects alternating leakage currents
• Class A detects alternating leakage currents and you continue. Suitable for differential protection of frequency converters, chargers and inverters. Avoid untimely shots caused by lightning, lighting fluorescent, transients, sudden maneuvers, etc. Highly immunized.
• Non-operational leakage intensity: 0.5xIDn
• Dimensions: 1 module per pole (18mm)
• Allows the attachment of accessories and electrical auxiliaries (see page 23)
• Insulation voltage (Ui) 500VA
• Pollution degree 3
• Impulse voltage (Uimp) 4kV
• Double insulation class 2
• Working temperature -5÷400C
| Poles: 1+N |
| Milliamp Sensitivity: 30 |
