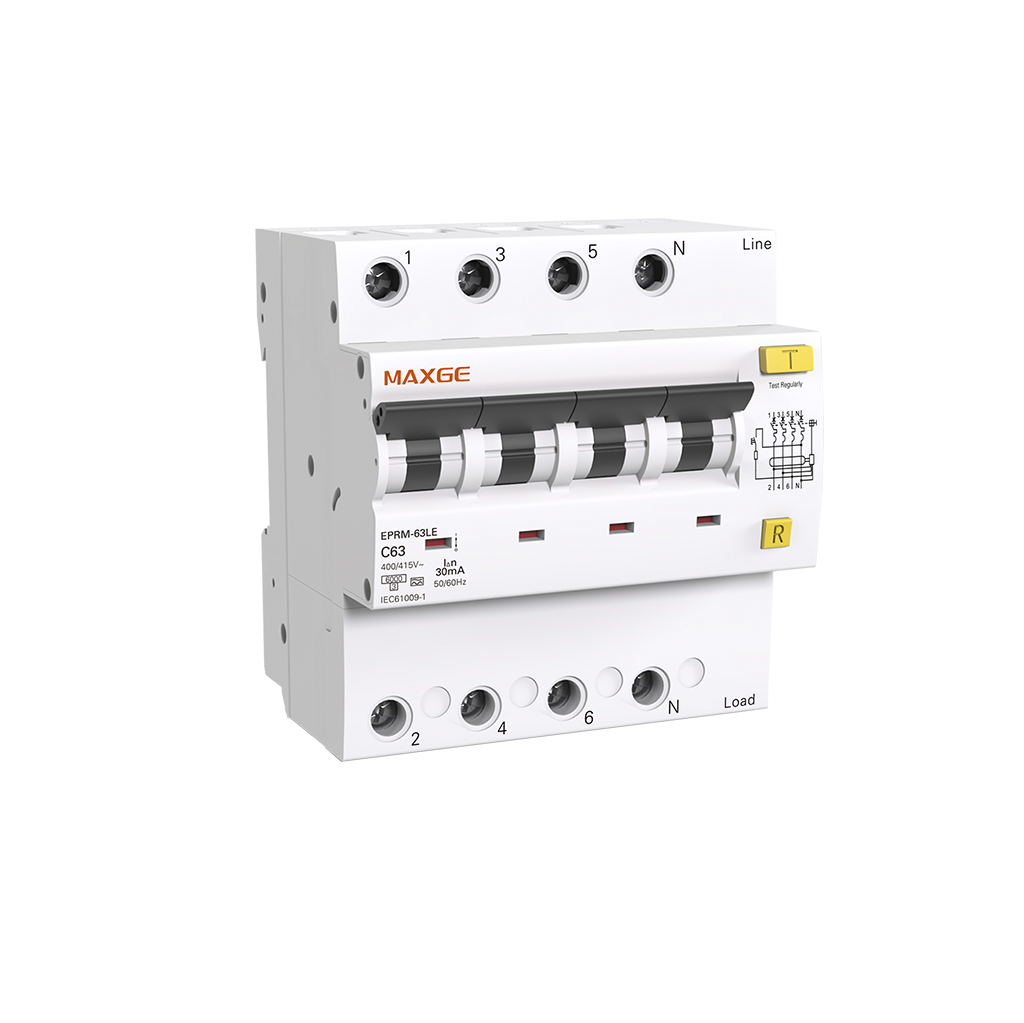

Combined switch, residual current circuit breaker + thermal-magnetic Class A (EPBR63LE)

Referencia:

http://www.maxge.eu/web/image/product.template/757/image_1920?unique=84936f2

Use in tertiary and industrial sectors.
• Allows coupling of accessories and electrical auxiliaries.
• Local status indication.
• Double insulation class 2.
• Breaking capacity: 6kA.
• Operating voltage: 415V AC.
• Insulation voltage (Ui): 500V AC.
• Impulse voltage (Uimp): 4kV.
• Terminal connection for copper cables: Flexible = 16mm², Rigid = 25mm².
• Dimensions: 3P: 72mm, 4P: 96mm.
• Pollution degree: 3.
• Endurance: Electrical: 4000 cycles, Mechanical: 10,000 cycles.
• Operating temperature: -5÷40°C.
• International standard: EN/IEC61009-1.
