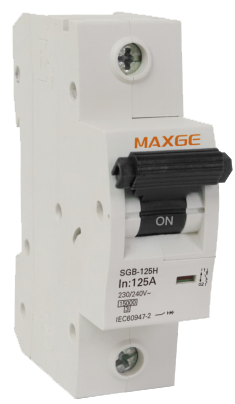

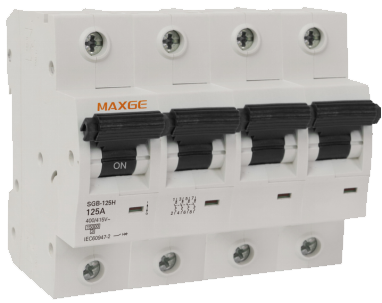

SGB125H Magnetothermic circuit breaker

Referencia: SGB125H

http://www.maxge.eu/web/image/product.template/994/image_1920?unique=dfcc341

- Operating voltage: 415/240V AC
- Maximum operating voltage: 440V AC
- Standards EN/IEC60947-2, 60898-1
- Local status signalling
- Breaking capacity:
- 15kA according to EN/IEC60947-2
- 10kA according to EN/IEC60898-1
- Terminal connection for copper cables:
- Flexible 1.5÷35mm2
- Rigid 1÷50mm2
- Dimensions: 1.5 modules per pole (27mm)
- Allows coupling of accessories and control gear (see page 26)
- Double insulation class 2
- Suitable for disconnection
- Working temperature: -5-400C
