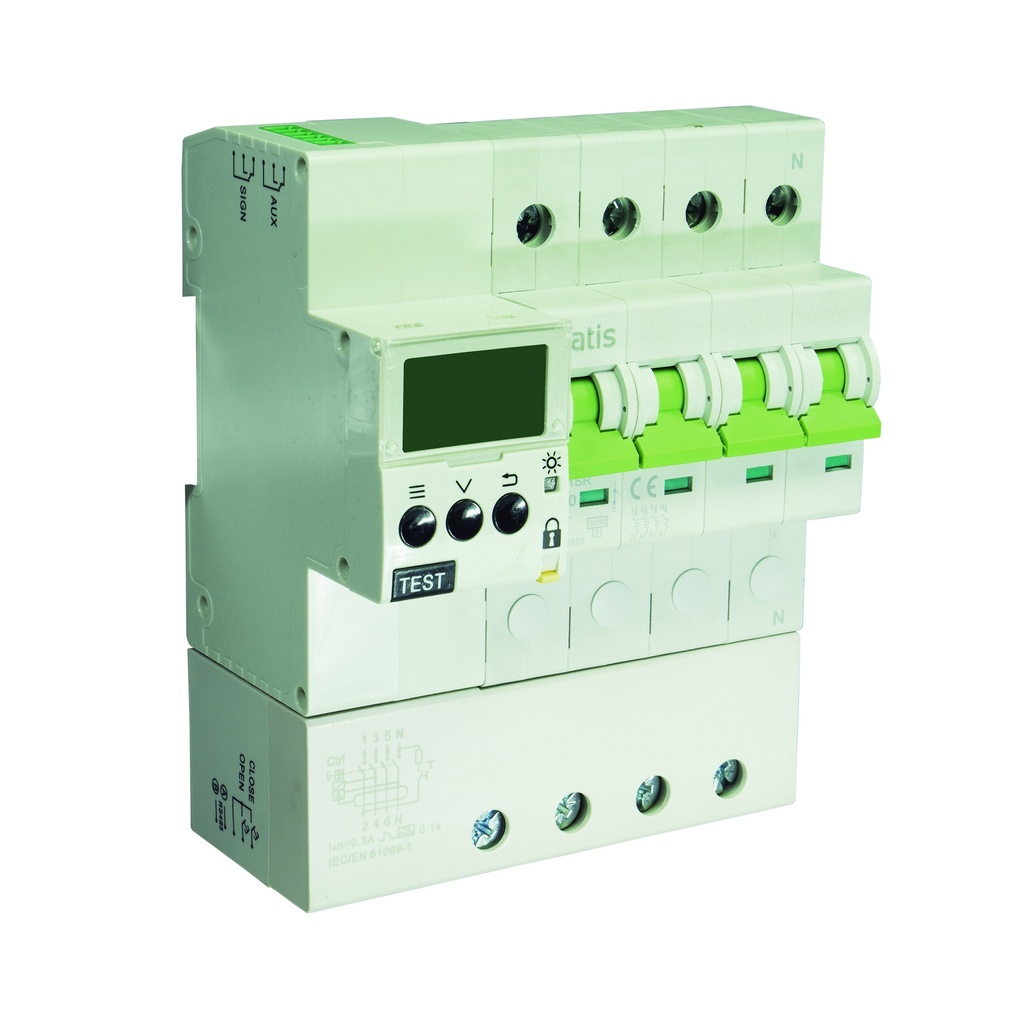

MT61 Advanced multi-protector with energy management system
Referencia:
• Complete protections included:
- Circuit breaker
- Differential
- Permanent overvoltage
- Undervoltage
- Undervoltage and phase failure
• Power limiter
• Bi-directional energy metering: purchase and grid feed-in
• Energy metering: kWh, kVArh and kVAh
• Electrical measurements: V. I, PF, kW, kVA, kVAr and Hz.
• Pulse value: 100kW/h
• Measured values: temperature, switch status
• LCD configuration display
• Operating voltage: 230/400V AC
• Operating frequency: 50/60Hz
• Auxiliary voltage: self-powered
• Trip curve: C
• Communication modes: GSM/GPRS 4G, WiFi or serial RS485
• Number of configurable reset times: 0÷8
• Adjustable reclosing time: 10÷180s
• Configurable undervoltage: 160÷190V
• Configurable overvoltage: 250÷300V
• Voltage reclosing adjustable: 10÷20s
• Autoreset configurable: 5÷30m
• Minimum voltage configurable: 0÷50V
• LED status indicator
• 85 records of faults and manoeuvres by date and time
• Password locking of settings
• Alarms programmable via email
• 1NAC auxiliary status contacts
• 1NAC alarm auxiliary contacts
• Connection capacity up to 50mm2
• Dimensions: 2P 54mm and 4P 90mm
• Standards: IEC62053-21, IEC60898
• Padlock and/or remote locking option
• Language configuration: English, Spanish and Chinese
• Applications: total and intelligent control and protection of electrical installations. Suitable for industrial maintenance, communication systems, industrial equipment, transport, etc. The installation will always be protected and in service as soon as the defect that caused the trip has disappeared, guaranteeing the continuity of the electricity supply. By means of APP it allows remote monitoring and action. Please consult us.
