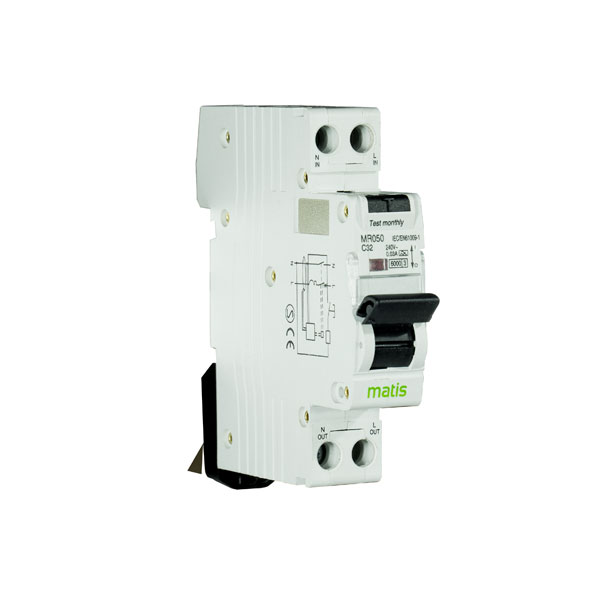

MR050 Residual current and circuit breakers and MCBs
Referencia: MR050A60030
Poles: 1+N |
Milliamp Sensitivity: 30 |
• Operating voltage: 415/240V AC
• 2P and 1P+N: 240V AC / 4P: 415V AC (between phases)
• International standard EN/IEC61008-1
• Terminal connection for copper cables:
• Sizes: flexible =25mm2 and rigid =35mm2
• Class A detects alternating and direct leakage currents. Suitable for differential protection of frequency inverters, chargers and inverters. Prevents untimely tripping caused by lightning, fluorescent lighting, transients, sudden manoeuvres, etc. Highly immunised.
• Dimensions: 1 module per pole (18mm), except ML60-2B (54mm) and MR050 (18mm).
Poles: 1+N |
Milliamp Sensitivity: 30 |
