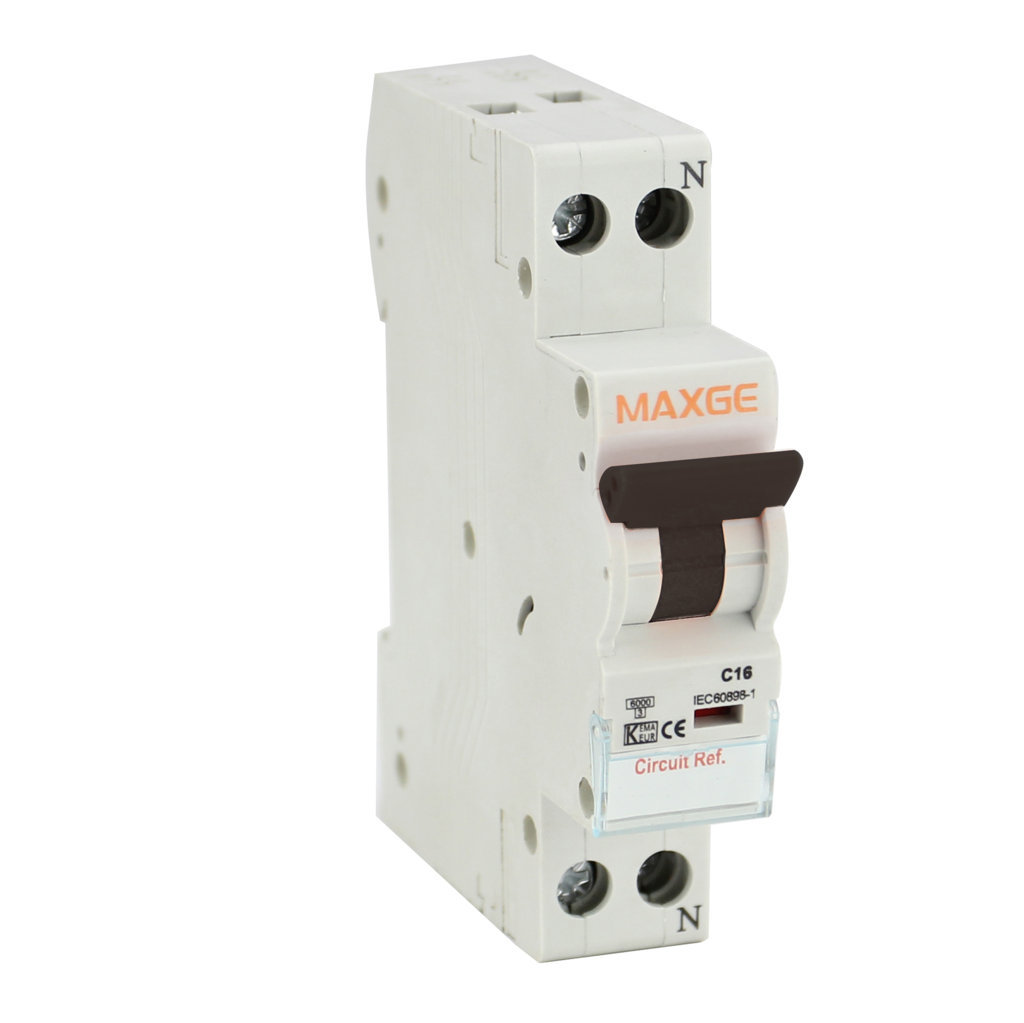

EPDPN. Magneto-thermal automatic switch. Tertiary. Cut 6kA
Referencia: EPDPN6KB01
| Poles: 1+N |
• Operating voltage: 240V AC
• International regulations EN/IEC60898-1, 60947-2
• Local status signaling
• Circuit marker window
• Terminal connection for copper cables:
• Flexible 1.5÷10mm2
• Rigid 1÷16mm2
• Dimensions: 1 module (18mm)
• Allows the coupling of accessories and electrical auxiliaries
• Insulation voltage (Ui) 250VA
• Pollution degree 3
• Impulse voltage (Uimp) 4kV
• Double insulation class 2
• Suitable for sectioning
• Working temperature: -5÷400C
| Poles: 1+N |
