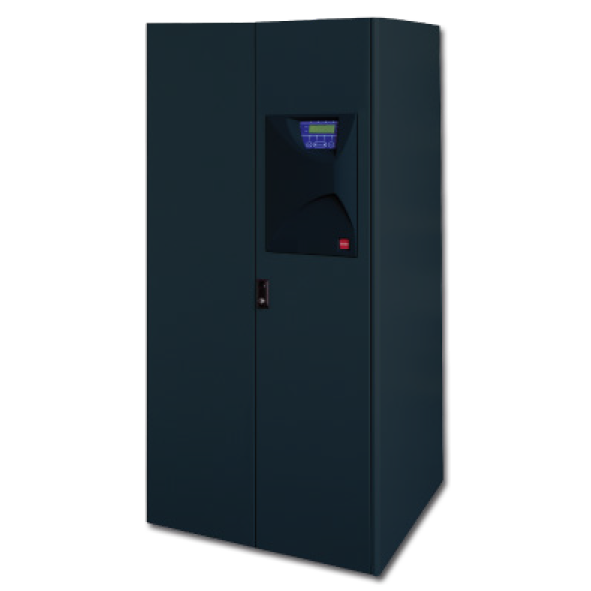

UPS On-line critical three-phase input and three-phase output systems up to 400kVA. RT series
Referencia: RTVL050
| Assembly: tower |
General characteristics:
Double VFI conversion, with high performance thanks to IGBT technology and digital control. Cooled by innovative liquid cooling system.
Indicated for industrial equipment, telecommunications, servers, security, electromedicine and critical loads in general. Allows parallel installation of up to 8 units.
• LCD display;
• Complete unit status information
• With alarm indication
• Entrance;
• Phase-phase voltage: 330÷480VAC
• Frequency: 50/60Hz ±20%
• Power factor: >0.95
• Exit;
• Voltage: 380/400/415VAC ±1%
• Voltage accuracy: ±1% (at static load)
• Network synchronization: 50÷60Hz
• Distortion: <3% (with static load)
• Allows 100% phase imbalance
• Crest factor: 3 to 1
• Efficiency: >95%
• Allowable overloads (normal mode): 125% 10m, 150% 60s
• Short circuit protection: included, with bypass switch
• Abnormal output: self-locking protection
• Transfer time: 0ms
| Assembly: tower |
