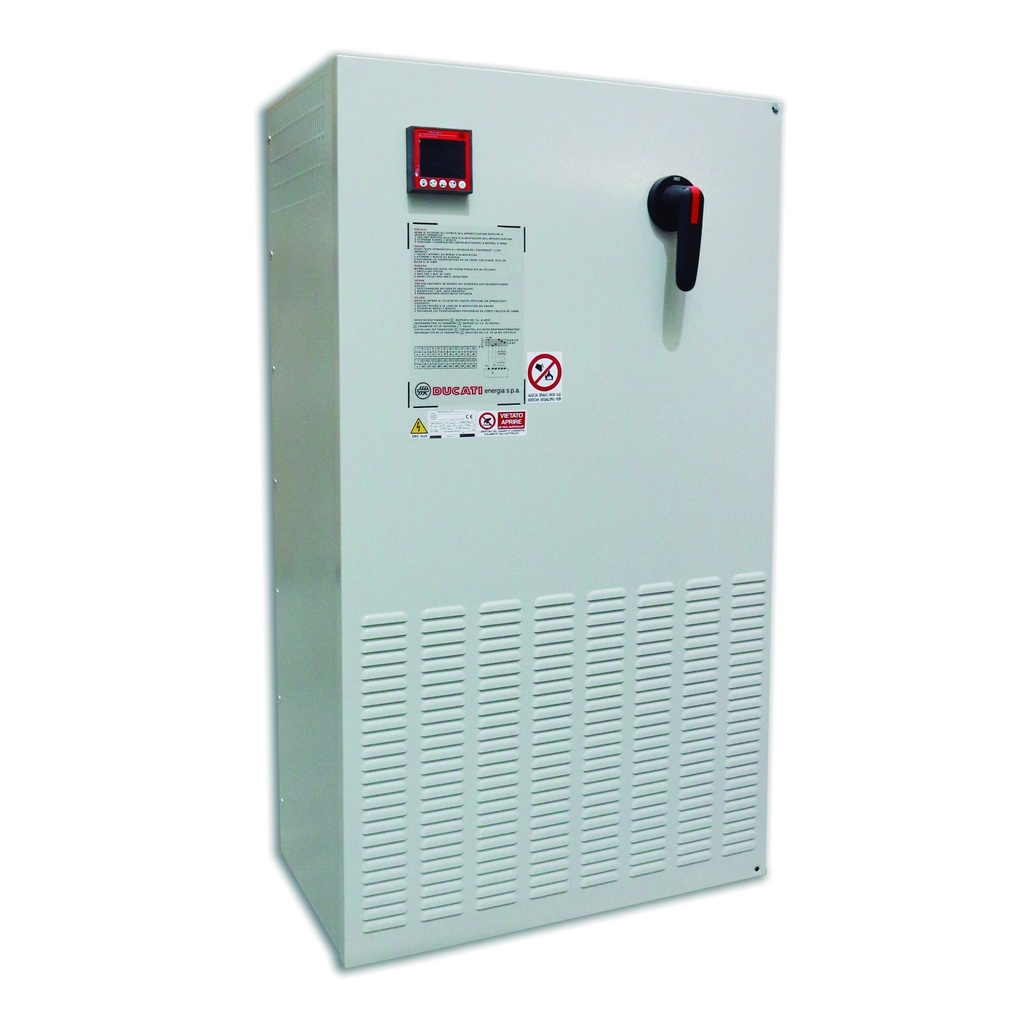

Self-regulating automatic capacitor bank Series 400-M up to 400 kVAr

Referencia: 415040610N

Designed for high-consumption installations (industry, hospitals, hypermarkets, sports stadiums, unique buildings, etc.) where the loads are variable and conditions are severe. Manufactured with removable module systems that allow for future expansions.
Networks with low or medium harmonic content <20% THDi.
Automatic compensation module 400-M up to 400 kVAr. Includes load-break switch. Operated by contactors.
Installation method: Floor-mounted.

Not Available For Sale

KiloVars 50 Hz network (400-M)
- 220 a 450V - 173 a 400V. 11 Electrical steps. Steps 20 + 3x20 + 80. (1470x800x400mm)
- 240 a 450V - 189 a 400V. 12 Electrical steps. Steps 2x20 + 40 + 2x80. (1470x800x400mm)
- 260 a 450V - 205 a 400V. 13 Electrical steps. Steps 20 + 2x40 + 2x80. (1470x800x400mm)
- 280 a 450V - 221 a 400V. 7 Electrical steps. Steps 3x40 + 2x80. (1470x800x400mm)
- 300 a 450V - 237 a 400V. 15 Electrical steps. Steps 20 + 40 + 3x80. (1470x800x400mm)
- 320 a 450V - 252 a 400V. 8 Electrical steps. Steps 2x40 + 3x80. (1470x800x400mm)
- 360 a 450V - 284 a 400V. 9 Electrical steps. Steps 40 + 4x80. (1470x800x400mm)
- 400 a 450V - 316 a 400V. 5 Electrical steps. Steps 5x80. (1470x800x400mm)

This combination does not exist.
