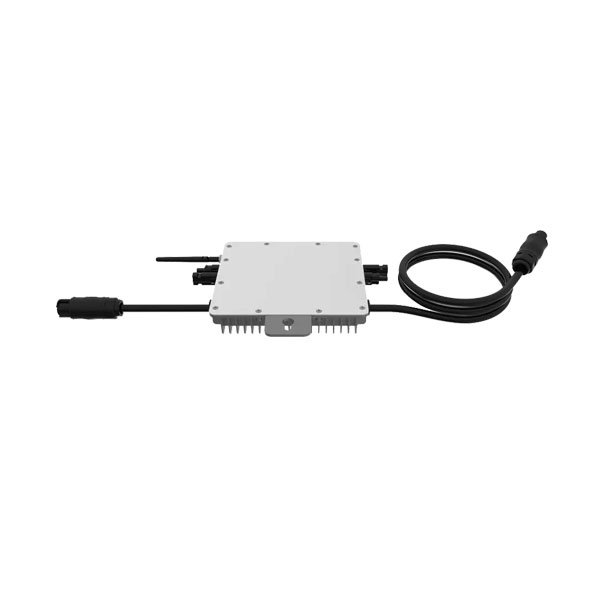

REPVMI Microinverters for single-phase self-consumption REPVMI - 1 and 2kW
Referencia: REPVMI1000G3EU230
• DC INVERTER INPUT:
• MPPT working voltage: 25÷55V
• Maximum voltage: 60V
• Module power: 210÷600W
• AC INVERTER OUTPUT:
• Working voltage: 184÷265V
• Nominal network connection frequency: 50Hz
• Network connection frequency range: 45÷55Hz
• Output power factor: >0.99
• THD: <3%
• GENERAL INFORMATION:
• Warranty: 10 years
• Own night consumption: 50mW
• Working temperature: -40÷65oC
• Protection degree: IP67
• Natural ventilation
• Maximum working height without losses: 2000m
• Useful life: >15 years
• CHARACTERISTICS:
• DC connections: MC4 connector
• AC connections: plugin
• Interface: WiFi/Zigbee
• STANDARDS: UNE 206006 IN:2011 and UNE 206007-1 IN:2013 Network connection: RD1699:2011, RD647/UNE217002, EN50549-1, VDE0126-1-1, VDE 4105, ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116, UNE 206006 IN, IEEE1547
• EMC Safety: UL 1741, IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-2, IEC61000-3-3
