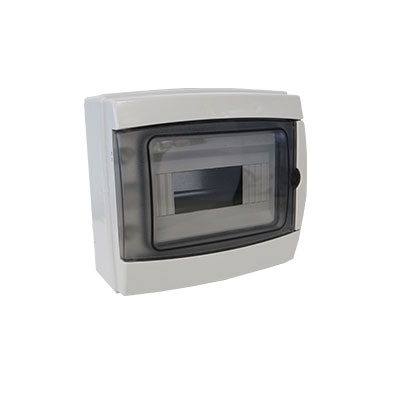

Plastic Modular Enclosures IP65 CP3 series
Referencia: CP3902
Surface-mounted distribution boxes made of self-extinguishing insulating acrylonitrile acrylic styrene.
Includes connection terminal and modular chassis.
Special resistance to chemical attacks and UV rays.
Transparent door fixable to the right or left of the cover, 180° opening.
Optional lock closure.
Insulation class II. Protection rating: IP65. Impact resistance: IK08.
Glow-wire test: 650°C.
Operating voltage: 400VAC and 1000VDC.
Standards: IEC60670 and IEC62208.
