  2. MGPV Photovoltaic protection panels for DC side in plastic

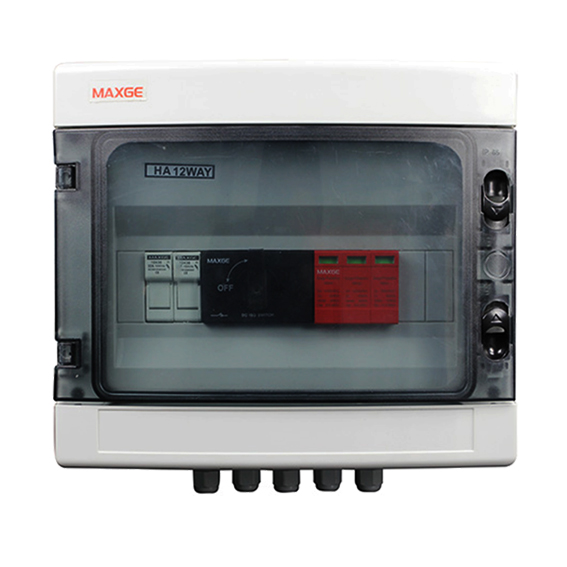

MGPV Photovoltaic protection panels for DC side in plastic

Referencia: MGPV0K5V2P11

http://www.maxge.eu/web/image/product.template/864/image_1920?unique=dfcc341


875 / 5.000
Resultados de traducción
Resultado de traducción
• Maximum input intensity per string: 15A
• Voltage protection level: 2.8kV
• Input fuse: MG-10/1P/15A 1000VDC
• Protection degree: IP65
• Enclosure material: PVC
• Type of Fixation: wall
• Plug-push structure
• Waterproof MC4 connectors
• Optional monitoring module (consult)
• Optional preventive diode (consult)
• Temperature: -25oC÷550C
• Relative humidity: 0÷95% without condensation
• Indicated for crystalline and polycrystalline silicon solar modules and thin film photovoltaic cells.
• High reliability with the most complete integrated protections.
• Great functionality and versatility. Resistant to water, dust, UVA rays. Wide working temperature range. Simple Installation.
• Upon request, the power of fuses, magneto-thermal switches and isolation switches can be modified.

Not Available For Sale

  • Maximum Current
  • Dimensions (Height-Width-Depth
  • No. of string
  • Operating voltage
  • No. of PV inverter inputs
  • No.of fuses
  • No. of circuit breakers
  • No. surge protection

This combination does not exist.
