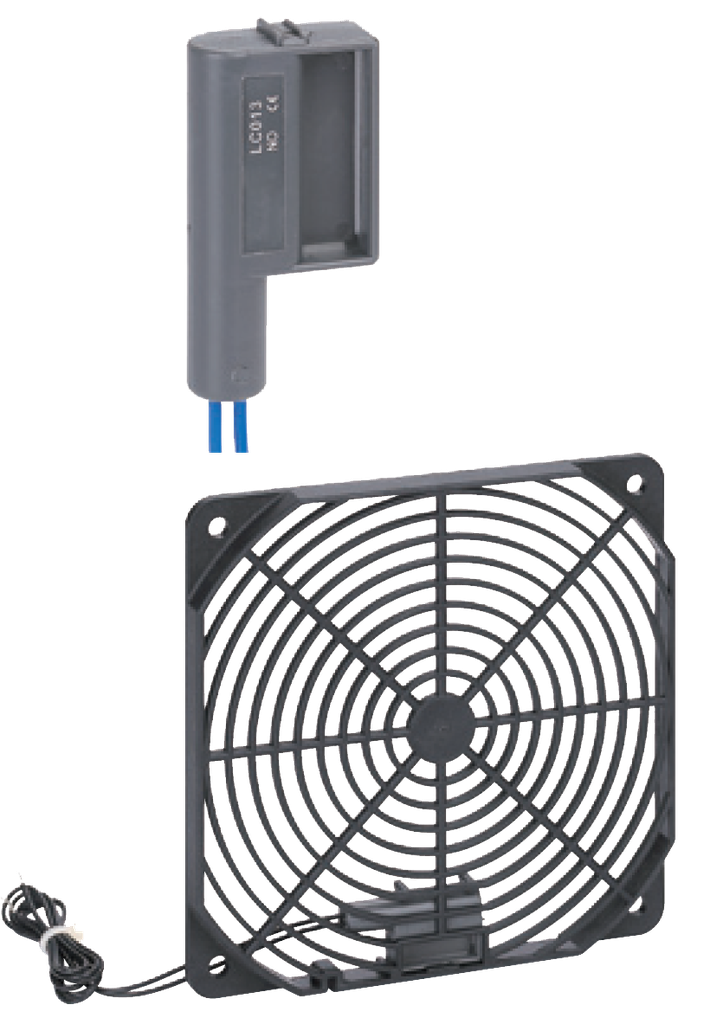

MFA Air Flow Meter
Referencia: 01301.1-00
- Type of contact: reed/magnetic
- Max. switching voltage NC: 240V AC/DC
- Max. switching voltage NO: 60V DC
- Max. switching current NC: 500mA DC
- Max. switching current NO: 170mA DC
- Max. switching power: 10W
- Maximum air speed: 50m/s
- Working temperature: -20-80°C
- Made of black plastic in compliance with UL94 HB
- Degree of protection: IP20
- Mounting: DIN rail
- Application: suitable for detecting ventilation movement losses, filter clogging, incorrect ventilation direction, etc.
