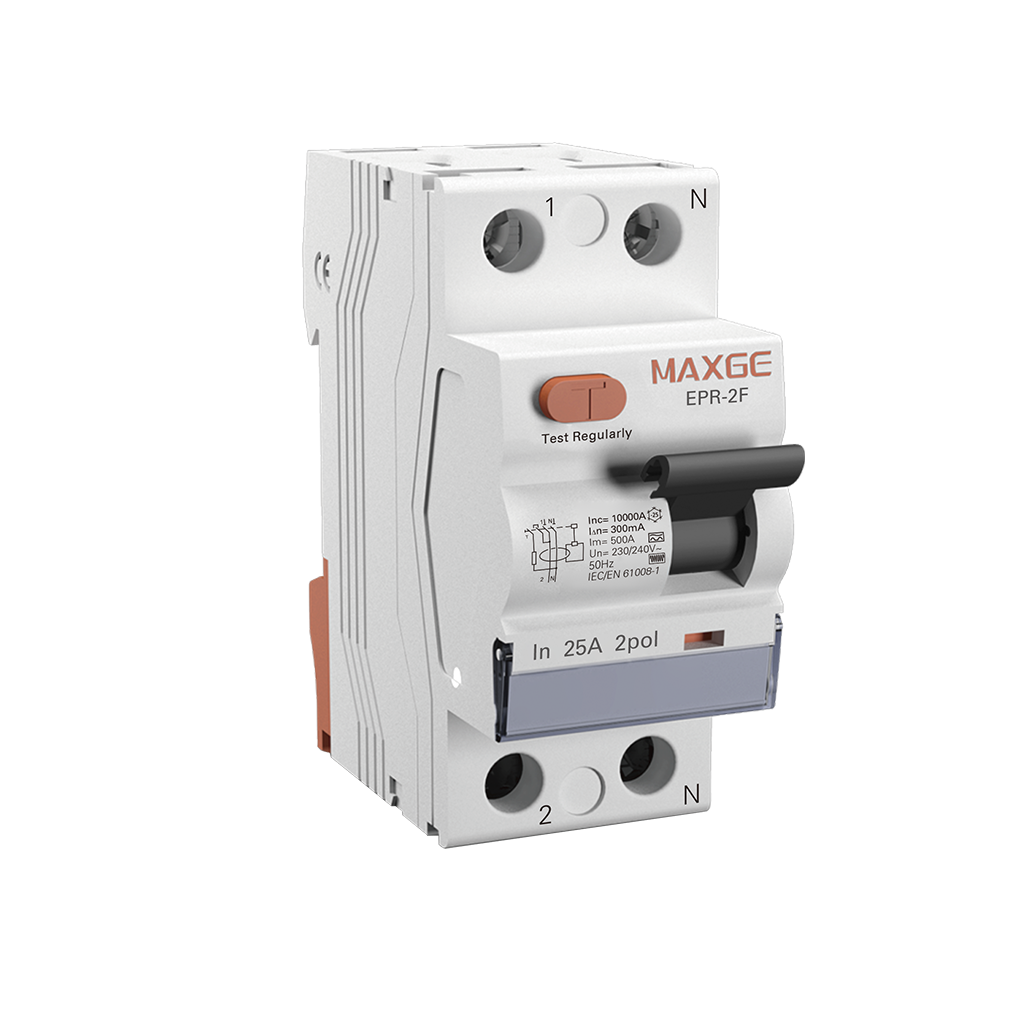

EPR differential switch class F
Referencia: EPR2F025030
Use in domestic, tertiary, and industrial sectors.
Local status indication.
Window for circuit marker.
Allows coupling of accessories and electrical auxiliaries.
Breaking capacity: 10kA.
Operating voltage: 2P: 240V AC, 4P: 415V AC (between phases).
Frequency: 50Hz.
Terminal connection for copper cables:
16÷63A: Flexible = 25mm², Rigid = 35mm²
80÷100A: Flexible = 35mm², Rigid = 50mm²
Torque: 2.5Nm.
Short-circuit resistance:
16÷50A: 500A
80÷100A: 10 x In
Non-operational leakage current: 0.5 x IDn.
Dimensions: 1 module per pole (18mm).
Insulation voltage (Ui): 500V AC.
Pollution degree: 3.
Impulse voltage (Uimp): 4kV.
Protection rating: IP20 (IP40 in enclosure).
Double insulation class 2.
Endurance: Electrical: 2000 cycles, Mechanical: 2000 cycles.
Operating temperature: -5÷40°C.
International standards: EN/IEC61008-1, EN/IEC62423.
