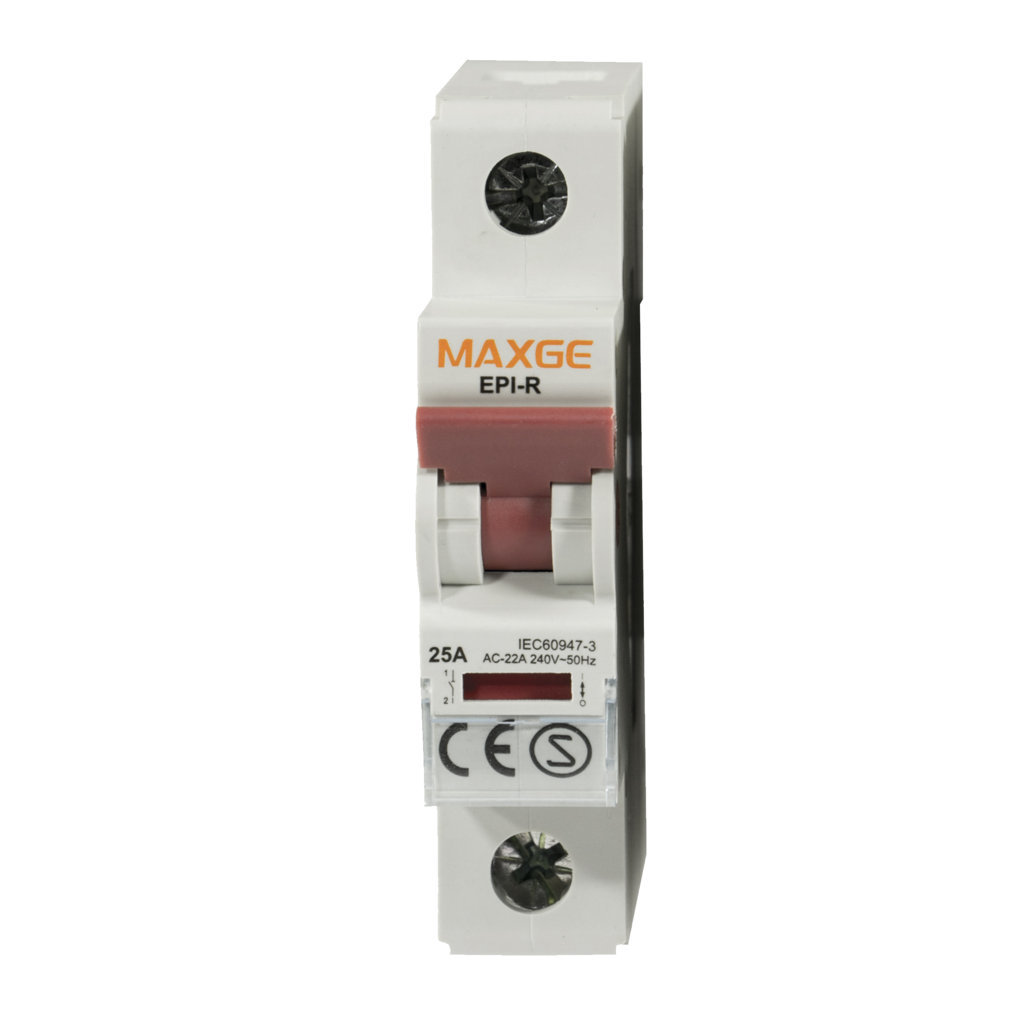

EPIR Switchgear
Referencia: EPIR1016
| Positions: 0-1 |
• Operating voltage: 415/240V AC
• Utilisation category: AC-22
• Short-term current (Icw): 12Ie, t=1s
• Switching capacity: 3Ie, 1.05Ue, cosj=0.65
• International standard EN/IEC60947-3
• Local status signalling
• Window for circuit marker
• Connection on box terminals for copper cables:
• 16÷63A gauge: flexible =25mm2 and rigid =35mm2
• Rating 100÷125A: flexible =35mm2 and rigid =50mm2
• Dimensions: 1 module per pole (18mm)
• Insulation voltage (Ui) 690VA
• Impulse voltage (Uimp) 6kV
• Double insulation class 2
• Working temperature -5÷350C
| Positions: 0-1 |
