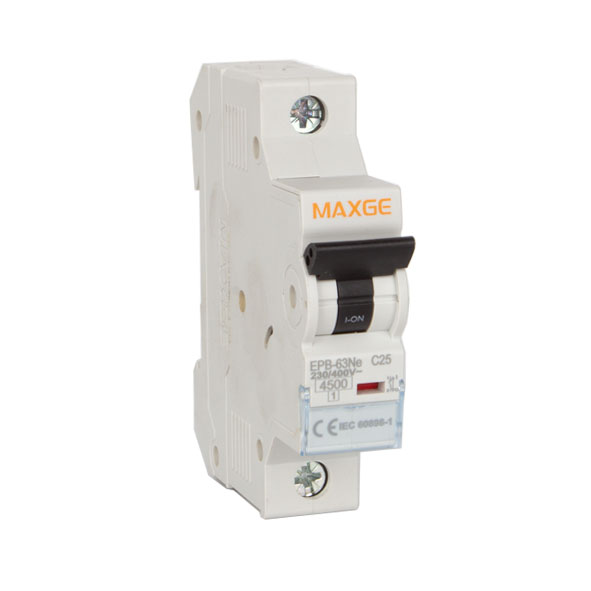

EPB63ME. Magnetothermal automatic switch. Residential. Cut 6kA. C Curve
Referencia: EPB63Me1C06
• Operating voltage: 1P and 1P+N 240VAC, 2P 415VAC
• International standard EN/IEC60898-1
• Local status signaling
• Circuit marker window
• Dimensions: 1 module per pole (18mm)
• Terminal connection for copper cables:
• Gauge =25A: flexible =16mm2 and rigid =25mm2
• Caliber 32÷40A: flexible =25mm2 and rigid =35mm2
• Dimensions: 1 module per pole (18mm)
• Insulation voltage (Ui) 500VA
• Pollution degree 3
• Impulse voltage (Uimp) 4kV
• Double insulation class 2
• Suitable for sectioning
• Working temperature: -5÷400C
• Not accessible (except padlock)
