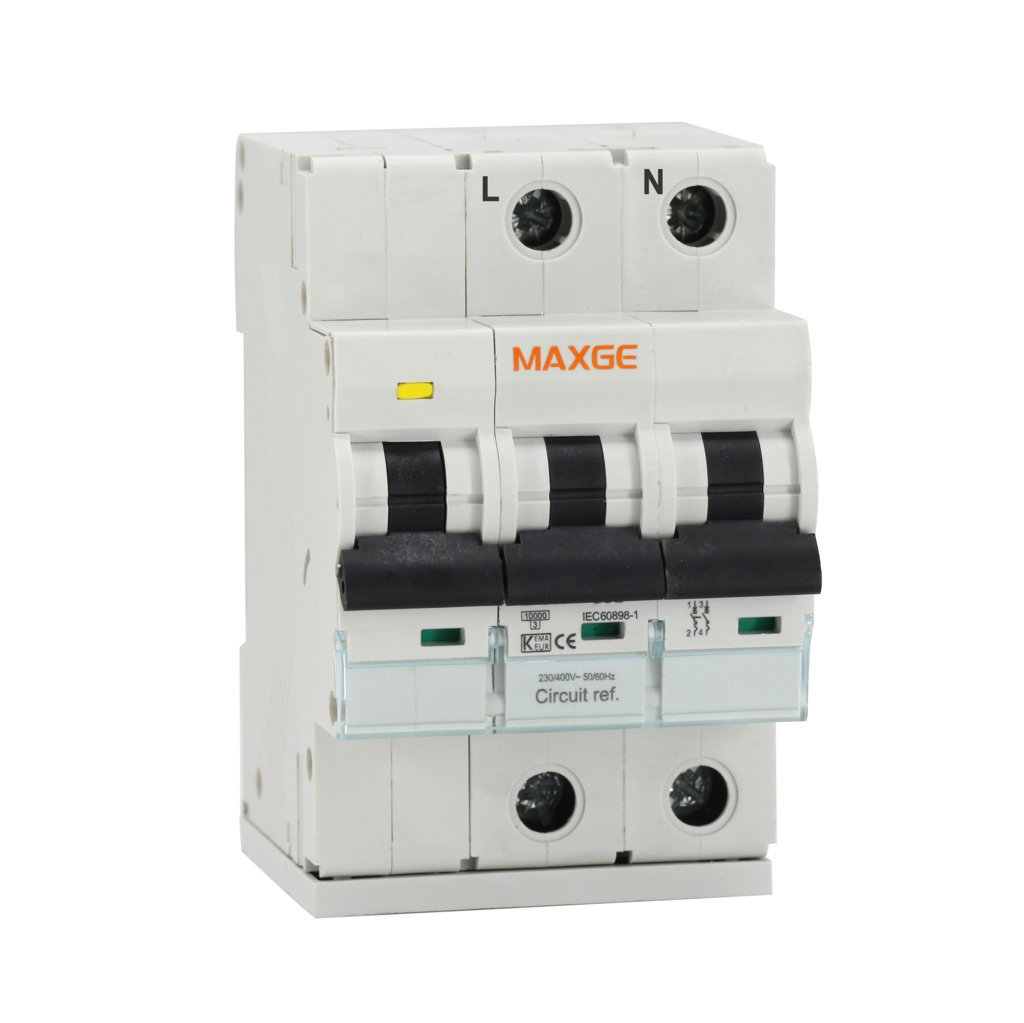

Combined protector: IGA + permanent and transient over voltage
Referencia: EPBOV2SC25
Pre-wired, ready for installation. Type 2 surge arrester.
Do not install on lines without neutral.
Window for circuit marker.
Permanent overvoltage trip threshold: 2P: 280V, 4P: 480V.
IGA breaking capacity: 10kA.
Dimensions: 54mm (2P) and 108mm (4P).
Standards: EN50550 / IEC61643-1 / IEC60898-1.
