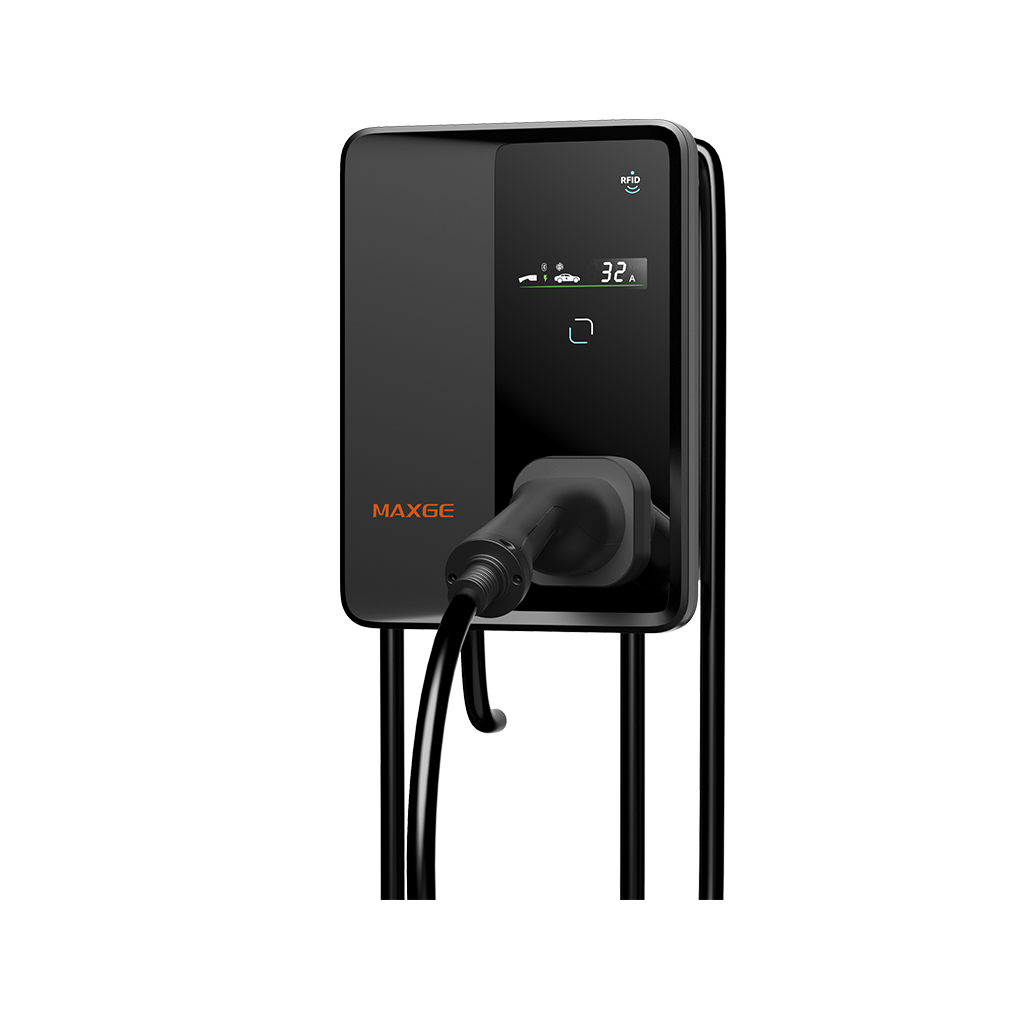

7kW and 22kW smart charging stations (EVD02)
Referencia: EVD0207RFID
Smart charging station EVD02 with Smart Life App.
Connector type 2. 1 outlet with 5m cable. Included protections.
Current limiter: 8-16-24-32A. Optional communication: WIFI + Bluetooth, 4G, and OCPP 1.6.
Material: ABS, IP65. Operating temperature: -25 to 45°C (5 to 95% humidity).
Wall installation (optional pedestal).
Operating voltage: 230V AC single-phase (L+N), 400V AC three-phase(3P+N).
Frequency: 50÷60Hz.
Charging current: 32A.
Status indication on display.
Included protections:
• RCD 6mA DC / 30mA AC
• Overload, permanent overvoltage, transient overvoltage
• Over-temperature
• Ground fault
Additional optional functions:
• Smart Life App for charging control
• Multi-point power control
• Load balancing
• Excess solar (PV) charging
Wide range of accessories available.
International standards: IEC61851, IEC62196, EN50620/IEC62893.
