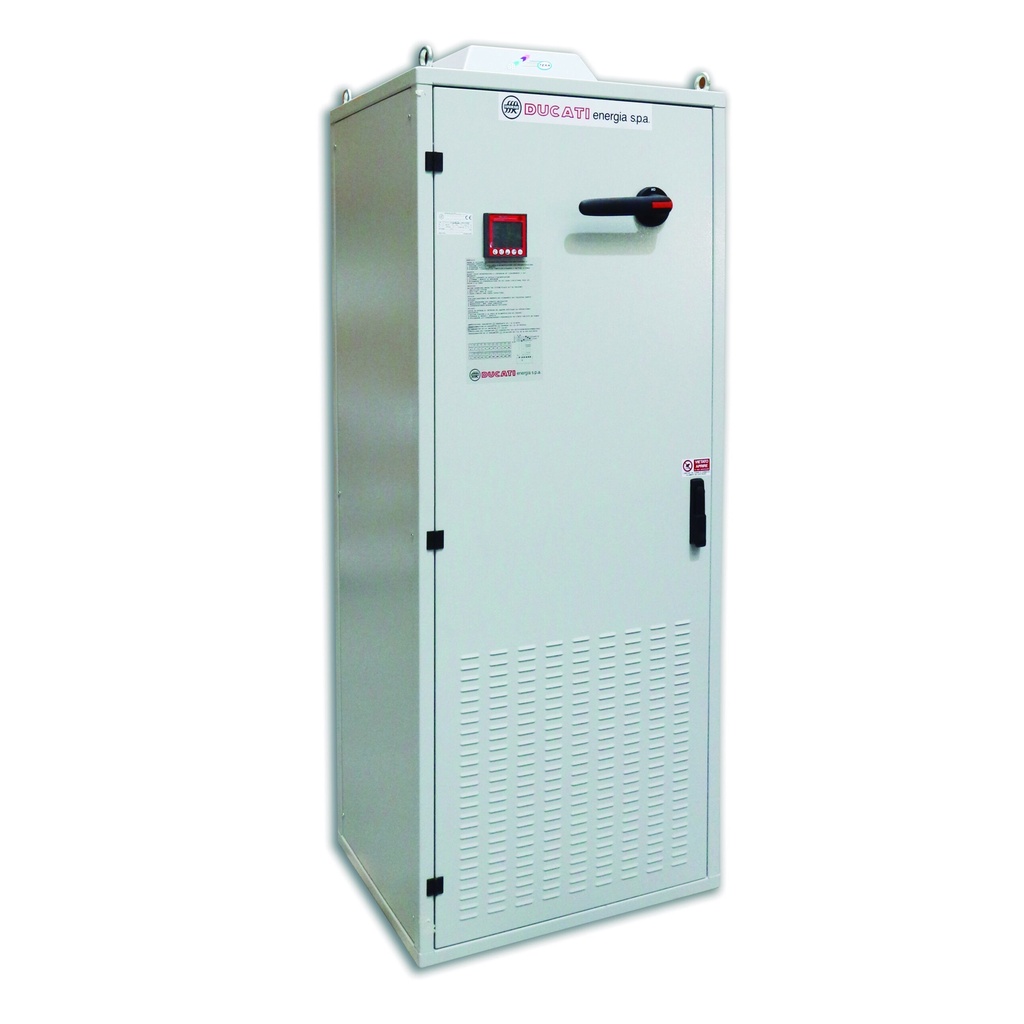

1600-R Series Self-Regulating Automatic Battery

• KiloVars 50 Hz network (1600-R)
  • 240 a 450V - 189 a 400V. 6 Electrical steps. Steps 6x40. (2250x800x600mm)
  • 280 a 450V - 221 a 400V. 7 Electrical steps. Steps 7x40. (2250x800x600mm)
  • 320 a 450V - 252 a 400V. 8 Electrical steps. Steps 6x40 + 80. (2250x800x600mm)
  • 360 a 450V - 284 a 400V. 9 Electrical steps. Steps 5x40 + 2x80. (2250x800x600mm)
  • 400 a 450V - 316 a 400V. 10 Electrical steps. Steps 4x40 + 3x80. (2250x800x600mm)
  • 440 a 450V - 347 a 400V. 11 Electrical steps. Steps 3x40 + 4x80. (2250x800x600mm)
  • 480 a 450V - 379 a 400V. 12 Electrical steps. Steps 2x40 + 5x80. (2250x800x600mm)
  • 520 a 450V - 410 a 400V. 13 Electrical steps. Steps 3x40 + 5x80. (2250x800x600mm)
  • 560 a 450V - 442 a 400V. 14 Electrical steps. Steps 2x40 + 6x80. (2250x800x600mm)
  • 600 a 450V - 474 a 400V. 15 Electrical steps. Steps 3x40 + 6x80. (2250x800x600mm)
  • 640 a 450V - 505 a 400V. 16 Electrical steps. Steps 2x40 + 7x80. (2250x800x600mm)
  • 680 a 450V - 537 a 400V. 17 Electrical steps. Steps 3x40 + 7x80. (2250x800x600mm)
  • 720 a 450V - 568 a 400V. 18 Electrical steps. Steps 2x40 + 8x80. (2250x800x600mm)
  • 800 a 450V - 632 a 400V. 20 Electrical steps. Steps 2x40 + 9x80. (2250x800x600mm)
  • 880 a 450V - 695 a 400V. 22 Electrical steps. Steps 2x40 + 10x80. (2250x1600x600mm)
  • 960 a 450V - 758 a 400V. 12 Electrical steps. Steps 8x80 + 2x160. (2250x1600x600mm)
  • 1040 a 450V - 821 a 400V. 13 Electrical steps. Steps 7x80 + 3x160. (2250x1600x600mm)
  • 1120 a 450V - 884 a 400V. 14 Electrical steps. Steps 10x80 + 4x160. (2250x1600x600mm)
  • 1200 a 450V - 948 a 400V. 15 Electrical steps. Steps 5x80 + 5x160. (2250x1600x600mm)
  • 1280 a 450V - 1011 a 400V. 16 Electrical steps. Steps 4x80 + 6x160. (2250x1600x600mm)
  • 1360 a 450V - 1074 a 400V. 17 Electrical steps. Steps 3x80 + 7x160. (2250x1600x600mm)
  • 1440 a 450V - 1137 a 400V. 18 Electrical steps. Steps 2x80 + 8x160. (2250x1600x600mm)
  • 1520 a 450V - 1201 a 400V. 19 Electrical steps. Steps 3x80 + 6x160 + 320. (2250x1600x600mm)
  • 1600 a 450V - 1264 a 400V. 20 Electrical steps. Steps 2x80 + 7x160 + 320. (2250x1600x600mm)

This combination does not exist.

Referencia: 415041110
